Stormwater Drainage Installation, Sub-Soil Drainage & Renovation Plumbing – Narrabeen

Designing Effective Backyard Drainage Systems for Long-Term Water Control

Our team attended a residential property in Narrabeen to complete a full backyard drainage upgrade as part of ongoing renovation works. The property was experiencing poor water movement across the yard, especially during heavy rain, leading to water pooling and saturated ground conditions.

To resolve this, Pure Plumbing Professionals installed a complete backyard stormwater drainage system, including trenching, sub-soil drainage, and new stormwater connections. The goal was simple — move water away quickly and prevent future drainage issues.

This project is a good example of how effective backyard drainage solutions are designed using both surface and sub-surface systems.

Why Backyard Drainage Problems Happen

Backyard drainage problems are usually caused by poor water flow through the drainage system.

In areas like Narrabeen, common causes include:

• Heavy rain increasing stormwater runoff

• Poor fall in existing pipes

• Blocked or undersized stormwater drains

• Water collecting in low areas of the yard

• Clay-based soil holding moisture

When water cannot move properly, it leads to:

• Water pooling on the surface

• Soft or unstable ground

• Increased risk of flash flooding

• Long-term damage to landscaping and structures

This is why proper stormwater management is critical for homes across Sydney.

How a Backyard Drainage System Works

A complete backyard drainage system manages both surface water and groundwater.

This project included:

• Stormwater pits to collect water

• PVC pipes to carry water away

• Outdoor drains and grate systems for surface runoff

• Sub-soil trench drains to manage underground water

• Connections into the main stormwater network

Each part works together to move water away from the property and into safe discharge points.

At Pure Plumbing Professionals, we design systems that handle the entire drainage system, not just one problem area.

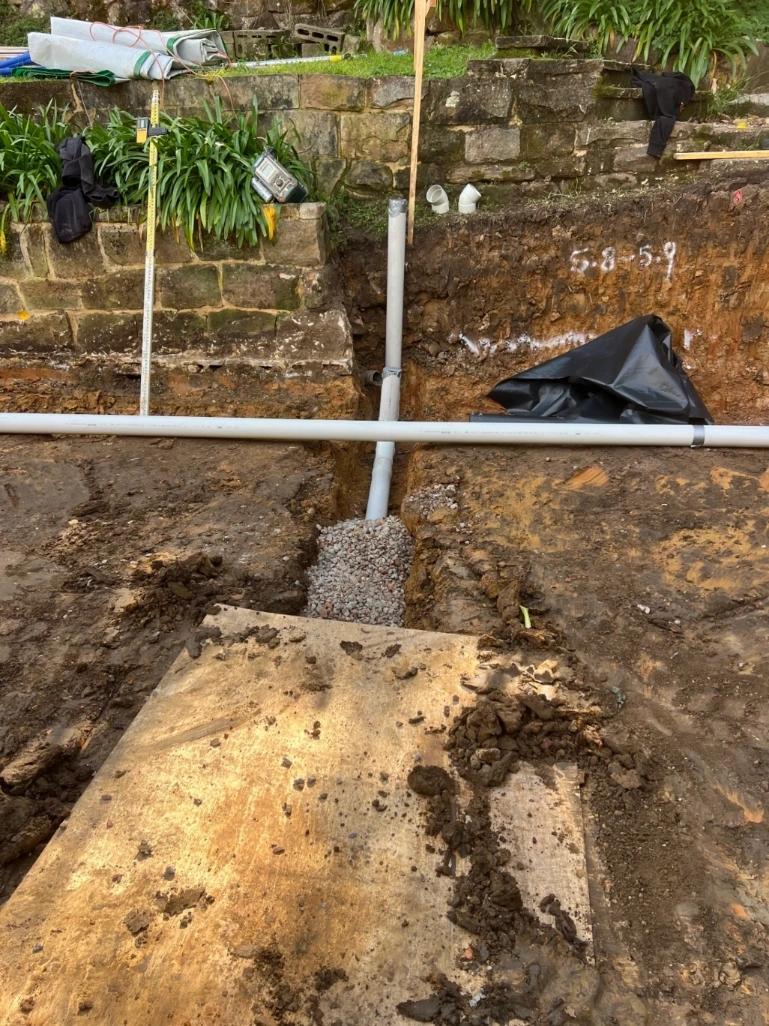

Excavation and Installation of Stormwater Drainage

To install the system, our team excavated around 36 metres of trenching across the backyard and along the property boundaries.

This allowed us to:

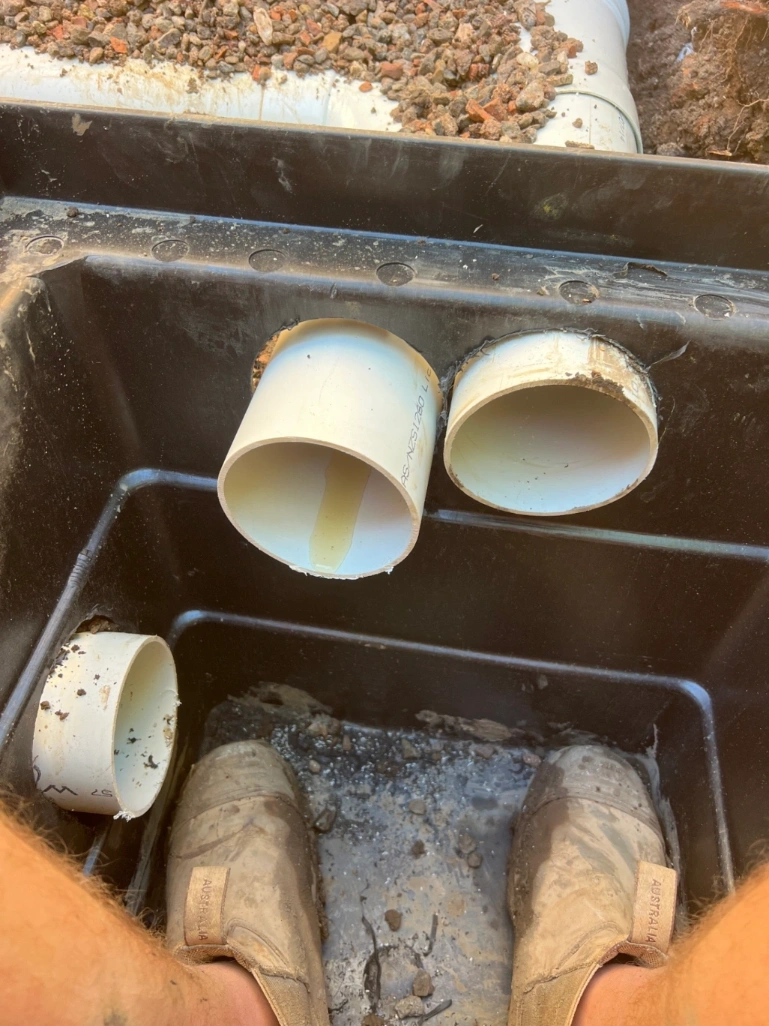

• Install new stormwater pits

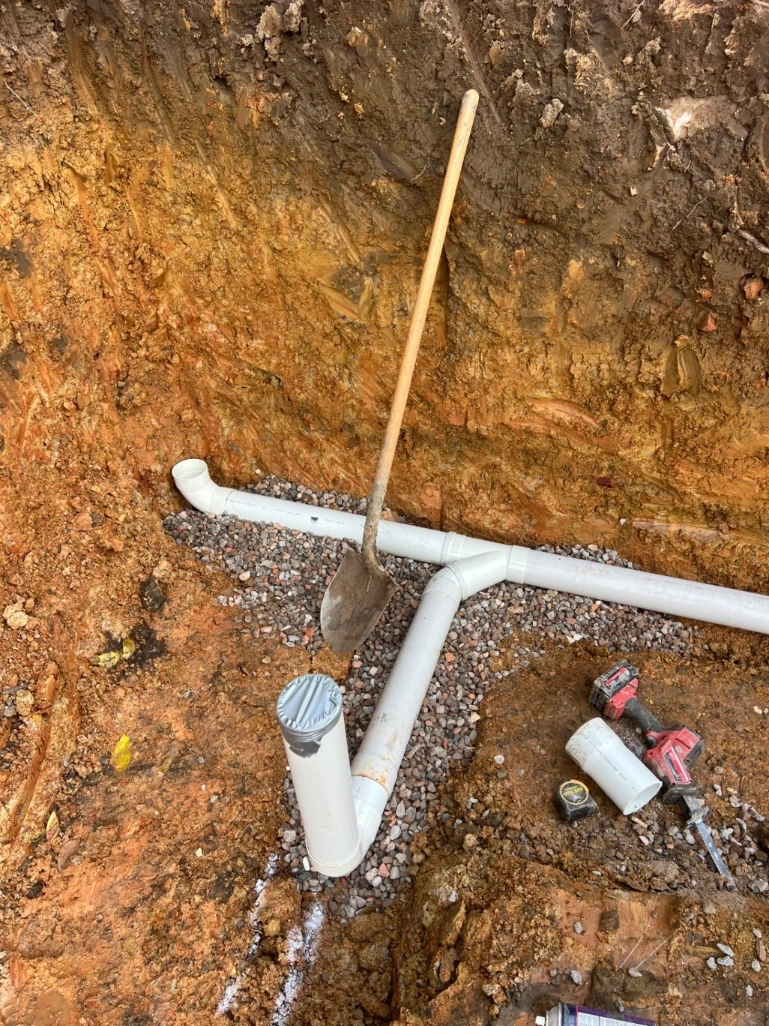

• Lay PVC pipes with correct fall for proper drainage

• Connect to existing stormwater connections

• Add inspection points for future maintenance

Correct fall is critical. Without it, water will sit in pipes instead of flowing through them.

This is a key part of building effective backyard drainage solutions.

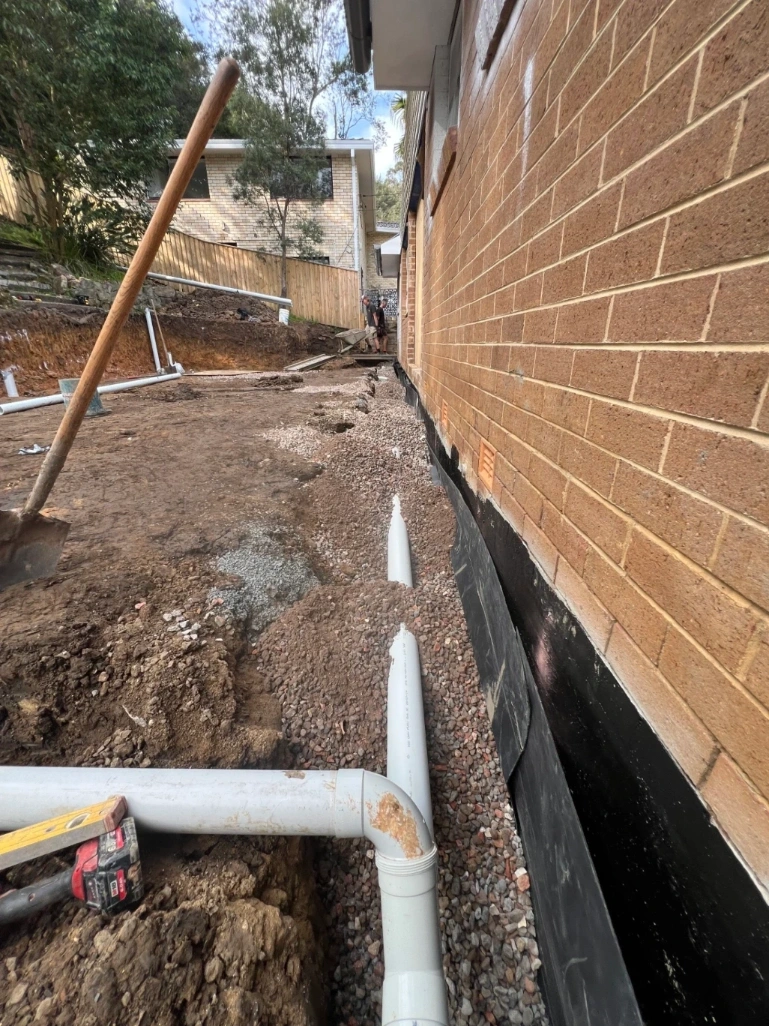

Sub-Soil Drainage and Groundwater Control

Surface drainage alone is not enough. Water also builds up below ground.

To manage this, we installed a sub-soil system using:

• Perforated pipes (AG drains)

• Drainage aggregate

• Geotextile wrapping to stop blockages

This system collects groundwater before it reaches the surface.

It also reduces pressure around footings and prevents long-term moisture issues.

Sub-soil systems are essential for properties with ongoing waterlogging or poor soil drainage.

Waterproofing and Protecting the Structure

We also completed waterproofing works to protect the home.

This included:

• Cleaning external walls

• Sealing cracks and penetrations

• Applying waterproof membranes

• Installing protective barriers

Waterproofing works with the stormwater drainage system to stop water entering the structure.

This is especially important in areas exposed to high stormwater runoff like Narrabeen.

Connecting Stormwater from All Sources

A good system captures water from every part of the property.

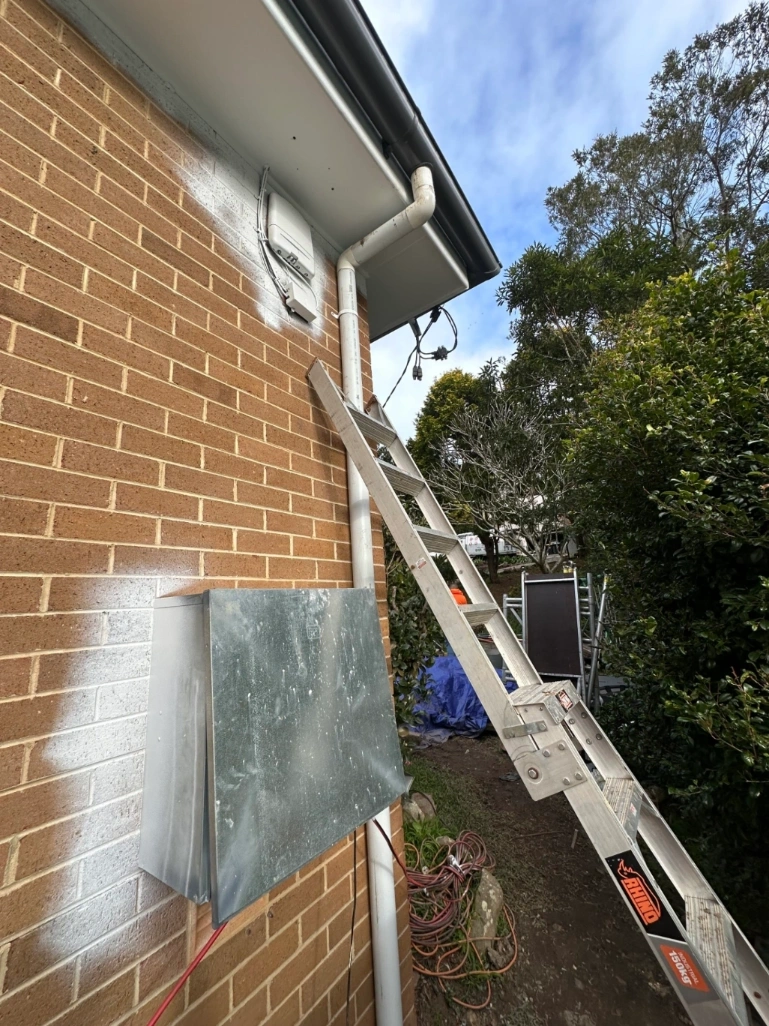

In this project, we installed:

• New downpipes connected into the system

• Drainage for retaining walls

• Alfresco outdoor drains

• An overflow relief gully (ORG)

• A garden tap connection integrated into the layout

This ensures all rainwater is directed into the main stormwater system.

Without proper connections, water can bypass the system and create new drainage problems.

What Most People Get Wrong About Backyard Drainage

Many homeowners think drainage is just about adding one drain.

But real drainage solutions require a full system.

Water comes from multiple sources:

• Roof runoff

• Surface water

• Groundwater

• Overflow from surrounding areas

If one part is missing, the system will not work properly.

That’s why professional stormwater drainage experts design systems that handle all water movement across the property.

The Impact of Poor Drainage

Poor backyard drainage can lead to serious issues over time.

These include:

• Ongoing water pooling

• Soil erosion

• Damage to foundations

• Increased risk of flooding

• Pressure on the local stormwater network

In some areas of Sydney, poor drainage can also affect nearby roads, waterways, and downstream systems.

This is why proper stormwater management is important not just for the property, but for the wider environment.

When You Need Backyard Drainage Solutions

You may need a new system if you notice:

• Water sitting in your yard after rain

• Slow draining outdoor drains

• Soggy or unstable ground

• Overflow during heavy rain

• Signs of drainage problems near structures

These are signs your current system is not handling your drainage needs.

Backyard Drainage and Stormwater Services in Narrabeen

Homes in Narrabeen often require tailored backyard drainage solutions due to soil conditions and coastal weather patterns.

At Pure Plumbing Professionals, we provide:

• Full stormwater drainage system installation

• Sub-soil and trench drains

• Stormwater pits and pipework

• Waterproofing and foundation protection

• Renovation plumbing support

• Ongoing drainage solutions and maintenance

We design systems that work with your property, not against it.

If you’re dealing with drainage issues or planning upgrades, we can help design a system that manages water properly.

Call 0483 915 451 to speak with our team or click Book Now to arrange an inspection.
