Using CCTV Drain Camera Inspections to Diagnose and Restore Stormwater Systems
Our team attended a property in Castle Hill, NSW 2154, to carry out detailed stormwater drain repairs after the system began showing signs of poor flow and restriction. Stormwater systems are designed to move large volumes of rainwater quickly, so even minor defects can lead to water build-up and drainage failure.
For this project, Pure Plumbing Professionals combined excavation, pipe replacement, and advanced CCTV Drain Inspection to accurately diagnose the issue and restore proper system performance.
This approach ensures that not only is the visible problem repaired, but the entire drainage line is assessed for long-term reliability.
Why Stormwater Drains Fail Over Time
Stormwater drainage systems are exposed to external conditions that can affect their performance.
Common causes of failure include:
- Ground movement affecting pipe alignment
- Cracked or collapsed pipe sections
- Tree root intrusion entering joints
- Build-up of debris restricting flow
- Poor installation or incorrect pipe fall
When these issues occur, water cannot move efficiently through the system. This often leads to pooling, overflow, or repeated blockages.
Professional Drainage Plumbing focuses on identifying both the immediate fault and any underlying issues within the system.

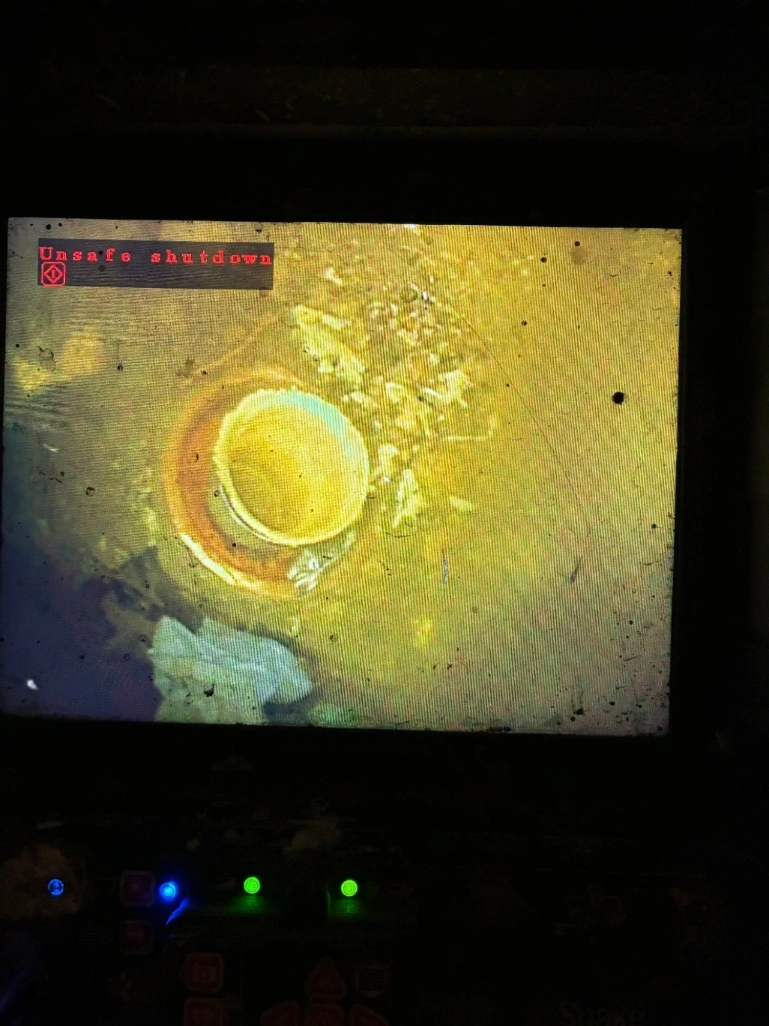

How CCTV Drain Camera Inspections Work
A CCTV Drain Inspection is one of the most effective tools for diagnosing stormwater drainage problems.
This process involves inserting a specialised waterproof camera into the drainage line. The camera transmits live footage, allowing plumbers to inspect the internal condition of the pipe in real time.
During this project in Castle Hill, our team used CCTV equipment to:
- Locate the exact position of the damaged pipe
- Assess the internal condition of the stormwater line
- Identify any additional cracks, blockages, or defects
- Confirm the success of repairs after installation
The camera head is mounted on a flexible cable that can travel through bends and long pipe runs. This allows full inspection without needing to excavate the entire system.
At Pure Plumbing Professionals, CCTV inspections are a key part of accurate Stormwater Drain Repairs, as they eliminate guesswork and prevent unnecessary digging.

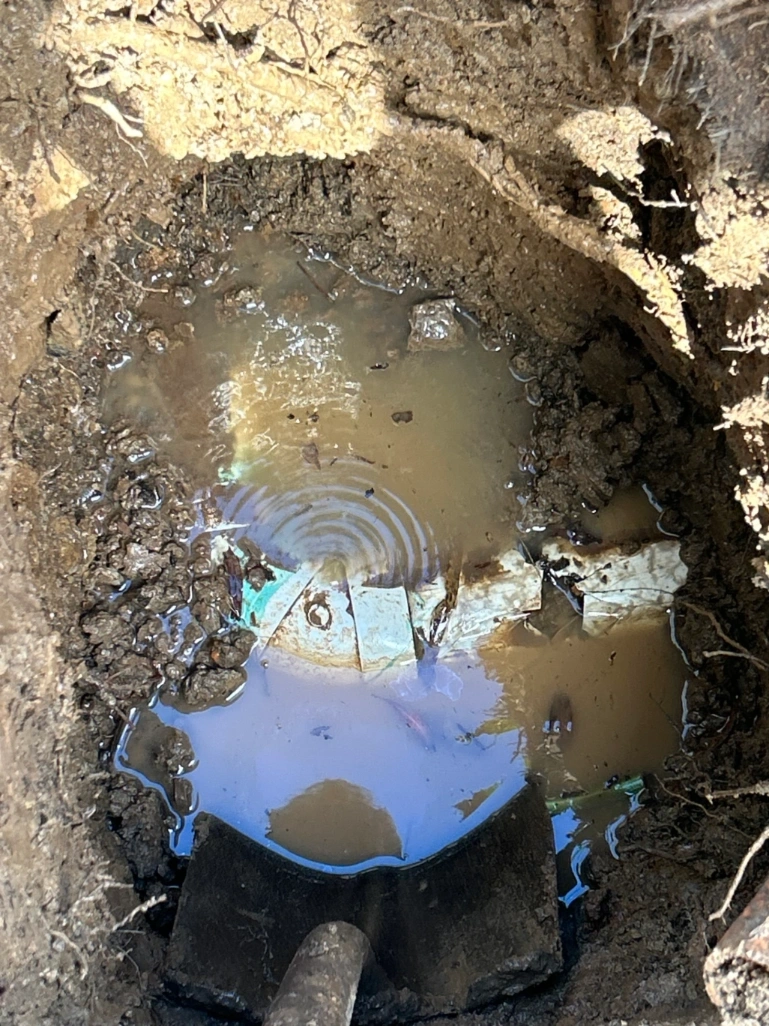

Locating and Exposing the Damaged Pipe

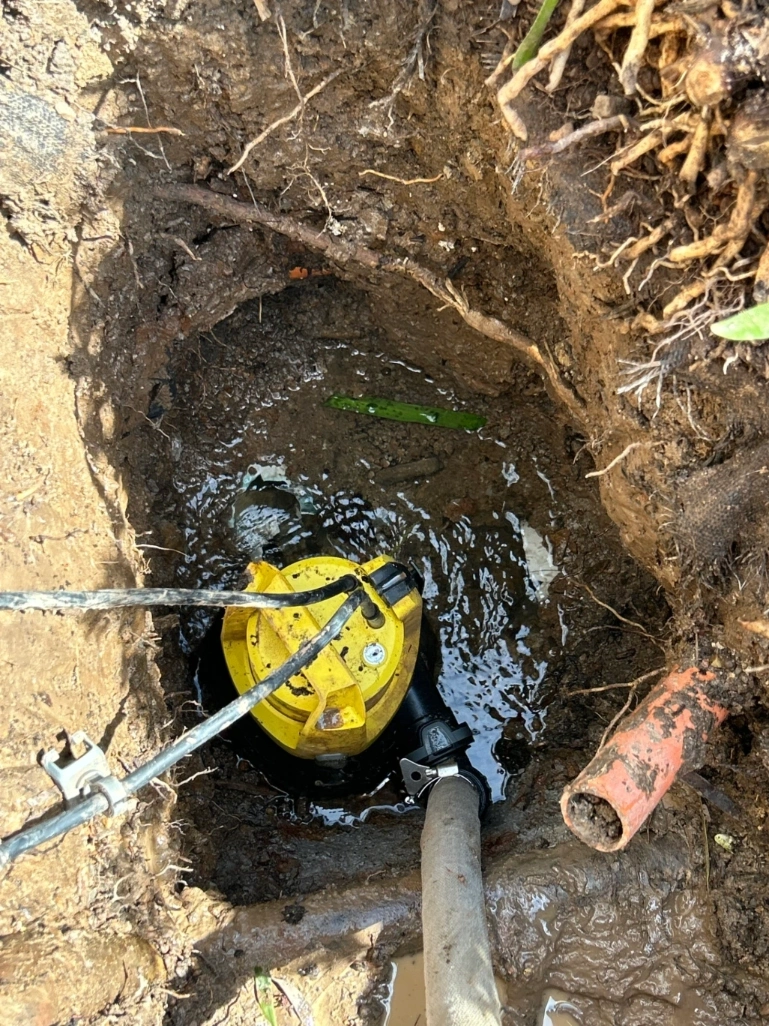

Once the problem area was identified, excavation works were carried out to access the affected section of pipe.
This involved:
- Preparing the site for safe excavation
- Digging down to expose the stormwater line
- Isolating the damaged section for repair
Excavation is sometimes required when pipe sections are too damaged to be repaired internally.
Careful excavation ensures minimal disruption while providing direct access to the problem area.

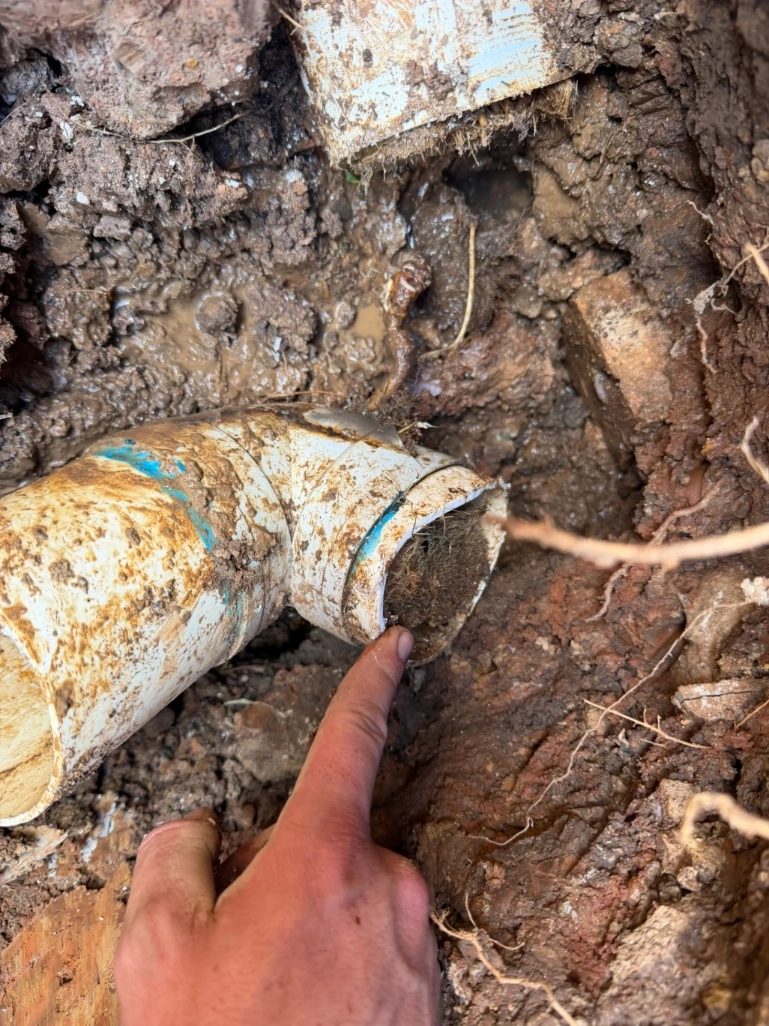

Removing and Replacing Faulty Pipe Sections
After exposing the pipework, the compromised section was cut out and removed.
New stormwater pipework and fittings were then installed to restore the system.
This included:
- Installing new PVC pipe sections
- Reconnecting to existing drainage lines
- Ensuring correct alignment and fall
Correct pipe fall is essential for effective stormwater flow. If pipes are not installed with the right gradient, water can slow down or collect within the system.
Replacing damaged sections ensures that the system can handle heavy rain and ongoing use.
Installing an Inspection Opening for Future Access
As part of the repair, a new inspection opening was installed.
Inspection openings allow future access to the drainage system for:
- Maintenance and cleaning
- CCTV inspections
- Clearing potential blockages
Including access points is a key part of modern Drainage Plumbing, as it allows the system to be maintained without further excavation.
High Pressure Drain Cleaning and System Preparation
Before final testing, the drainage line was cleaned using high-pressure water jetting.
This process removes:
- Debris and sediment
- Residual blockages
- Organic build-up inside the pipe
High-pressure Drain Cleaning ensures the system is fully clear and operating at maximum capacity.
Post-Repair CCTV Inspection and Testing
After installation, a second CCTV Drain Inspection was carried out to confirm the success of the repair.
This final inspection ensures:
- The new pipework is correctly installed
- There are no remaining defects
- The internal pipe surface is clear
The system was then tested to confirm:
- Proper water flow
- Leak-free connections
- Reliable drainage performance
Testing and verification are critical steps in professional Stormwater Drain Repairs.
Excavation and Site Reinstatement
Once all works were completed, the excavation area was backfilled and compacted.
This ensures:
- Ground stability is restored
- The repaired pipework is protected
- The area is returned to its original condition
All waste materials were removed, and the site was left clean.
What Most Homeowners Don’t Realise About Stormwater Systems
Many homeowners assume that clearing a blockage solves the problem.
However, underlying pipe damage is often the real cause of ongoing issues.
CCTV inspections often reveal:
- Hidden cracks or fractures
- Misaligned pipe sections
- Early signs of failure
Without identifying these issues, blockages are likely to return.
This is why Pure Plumbing Professionals uses CCTV technology as a standard part of diagnosing drainage problems.
When Stormwater Drain Repairs Are Required
Stormwater repairs are typically needed when:
- Water pools around the property during rain
- Drains overflow or back up
- Recurring blockages occur
- Ground areas become saturated
- Drainage systems fail under heavy rainfall
Addressing these issues early helps prevent larger damage and ensures effective water management.
Stormwater Drainage Services in Castle Hill
Properties in Castle Hill NSW 2154 often require professional drainage solutions to handle stormwater effectively.
The team at Pure Plumbing Professionals provides:
- Stormwater Drain Repairs
- Excavation and pipe replacement
- CCTV Drain Inspection
- High-pressure Drain Cleaning
- Complete Drainage Plumbing solutions
Each project is completed with a focus on accurate diagnosis and long-term performance.
