Repairing a Stormwater Drain Without Excavating the Entire Property
Our team attended a property in Marrickville to carry out major stormwater drainage repairs after sections of the underground drainage system had been affected by tree root intrusion. Rather than relying on a single repair method, this project combined traditional excavation with modern trenchless pipe relining to restore the stormwater system while keeping disruption to the property to a minimum.
The works included replacing damaged stormwater pipework, installing a new inspection opening, high-pressure water jetting, CCTV drain inspections, and structural pipe relining within the downstream council drainage network.
It's a great example of how the best drainage repairs often involve selecting the right repair method for each section of pipe, rather than treating the entire system the same way.
Tree Roots Love Stormwater Pipes
Many homeowners are surprised to learn that tree roots don't actually "break into" healthy pipes.
Instead, they take advantage of tiny weaknesses that already exist.
Older stormwater systems often contain small gaps at pipe joints, hairline cracks, or minor movement caused by years of ground settlement. Tree roots naturally seek out moisture, and even the smallest opening can provide enough water to encourage root growth.
Once inside the pipe, those roots continue expanding.
Over time they trap leaves, sediment and debris travelling through the stormwater system until water can no longer flow freely.
By the time surface water begins pooling around the property, the root system inside the pipe may have been developing for years.
Why We Didn't Just Dig Up the Whole Drain
When homeowners hear the words "damaged underground pipe," many assume the only solution is to excavate the entire drainage line.
Fortunately, that's no longer the case.
For this project, excavation was only carried out where direct access was needed to replace damaged sections of pipe.

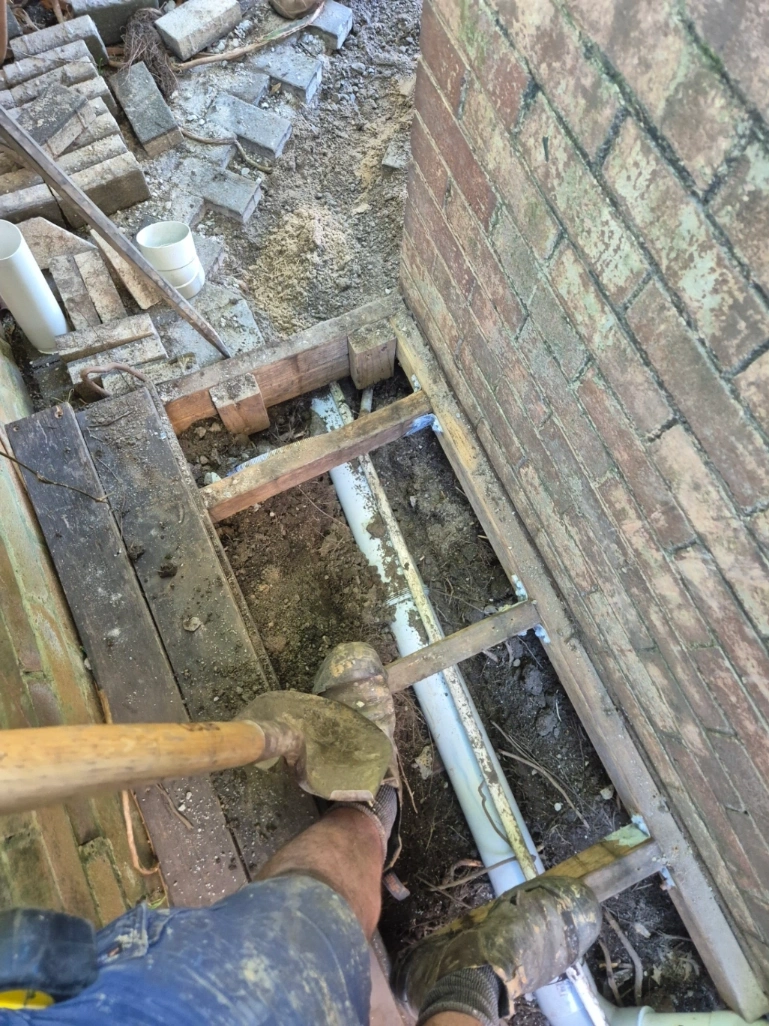

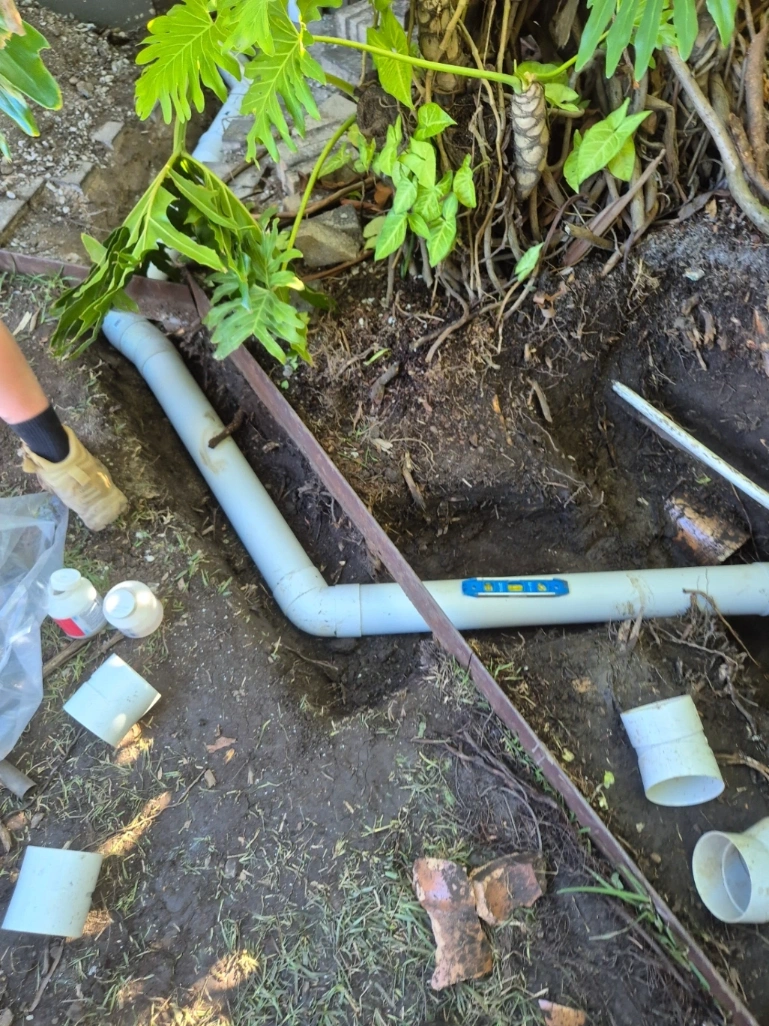

Sections of the existing timber decking were carefully removed before excavation commenced around the front yard and the nearby tree. Once the defective stormwater pipe was exposed, the damaged section was removed and replaced with new PVC stormwater pipework.
A new inspection opening was also installed.
Inspection openings are one of the most valuable additions to any drainage system because they provide direct access for future maintenance, CCTV inspections and high-pressure drain cleaning without requiring further excavation.
Once the replacement section had been completed, the decking and paving were reinstated to restore the appearance of the property.
Cleaning the Drain Before Repairing It
Before any pipe relining could take place, the remaining stormwater system needed to be thoroughly cleaned.
High-pressure water jetting was used to remove accumulated sediment, debris and remaining root material from the downstream stormwater line.
This isn't simply about restoring water flow.
Pipe relining relies on the new liner bonding directly to the inside surface of the existing pipe. If roots, dirt or loose debris remain inside the drain, the finished repair may not perform as intended.
High-pressure jetting leaves the pipe clean and ready for the next stage of rehabilitation while also restoring much of the drainage system's original flow capacity.
Pipe Relining Isn't Just for Sewer Pipes
Many people associate pipe relining with sewer repairs, but the same technology can also be used successfully on stormwater systems.
In this case, parts of the downstream drainage network within the council system had been affected by tree root intrusion.
Excavating these sections would have created significantly more disruption than necessary.
Instead, specialised trenchless pipe relining equipment was used to repair the damaged pipe internally.
After the drainage line had been cleaned and prepared, an epoxy reline patch was installed over the affected sections.
The liner was positioned precisely before being inflated against the inside of the existing pipe. As the epoxy cured, it bonded to the host pipe and created a new seamless structural lining over the damaged area.
Rather than replacing the entire pipeline, the damaged sections were reinforced from within, sealing the points where tree roots had previously entered.
Why Pipe Relining Is Becoming So Popular
One of the biggest advantages of pipe relining is that it allows plumbers to repair underground pipes without unnecessarily disturbing everything above them.
For homeowners, that often means protecting:
- Gardens
- Driveways
- Decking
- Paved entertaining areas
- Landscaping
- Established trees
While excavation is still sometimes required—as it was for part of this project—pipe relining allows many inaccessible sections of pipe to be repaired with far less disruption than traditional replacement methods.
It's not about avoiding excavation completely.
It's about excavating only where it's genuinely needed.
Why CCTV Drain Inspections Are the Final Quality Check
Once the relining process was complete, our team didn't simply assume the repair had been successful.

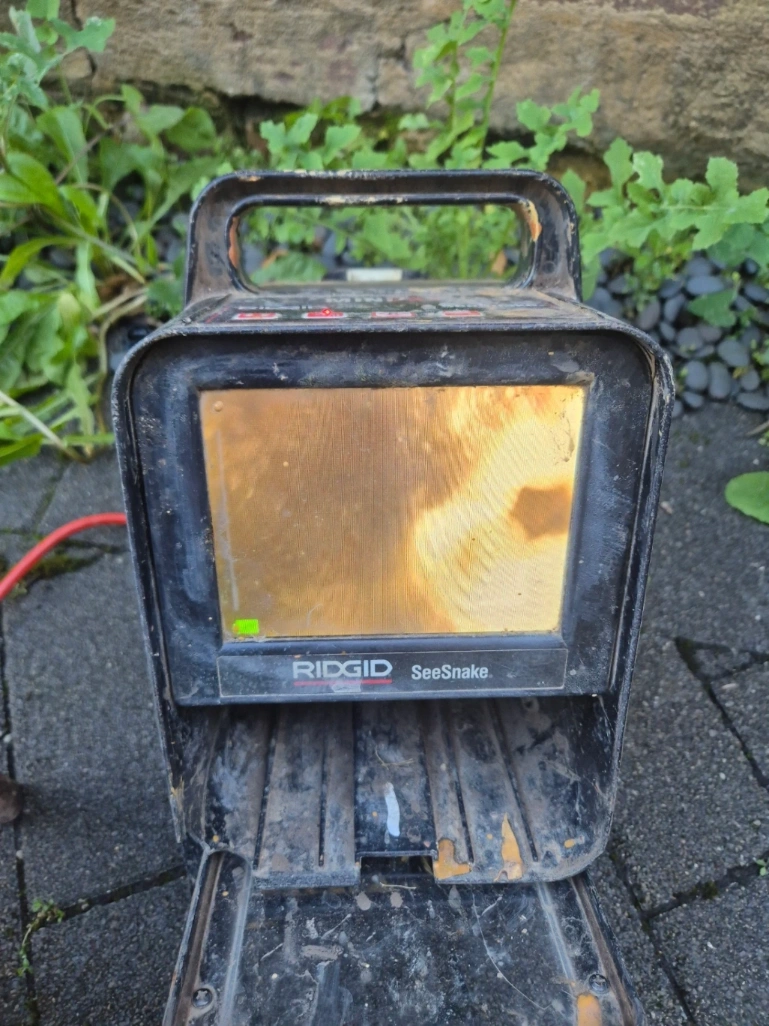

A post-installation CCTV drain camera inspection was carried out to inspect the finished liner from the inside.
This step allows plumbers to confirm:
- The liner has fully cured.
- The repair has bonded correctly to the existing pipe.
- There are no wrinkles or defects.
- Water can flow freely through the repaired section.
This final inspection is an important quality control step and gives both the plumber and homeowner confidence that the drainage repair has been completed correctly.
Combining Different Repair Methods Creates Better Results
One of the reasons this project achieved such a successful outcome is that it didn't rely on a single repair technique.
The damaged section closest to the property was replaced with new PVC pipework because excavation was already required.
The downstream sections affected by tree roots were repaired using trenchless pipe relining to minimise unnecessary disturbance.
High-pressure water jetting restored flow before repairs, while CCTV inspections confirmed the condition of the drainage system both before and after the work was completed.
Each repair method had its own purpose, and together they created a comprehensive long-term solution.
Stormwater Drainage Specialists in Marrickville
Stormwater systems often receive very little attention until they stop working properly.
By the time water begins pooling around downpipes or overflowing during heavy rain, the underlying problem has usually been developing underground for quite some time.
Pure Plumbing Professionals provides complete stormwater drainage solutions throughout Marrickville and surrounding suburbs, including:
- Stormwater Drainage Repairs
- Pipe Relining
- Stormwater Pipe Replacement
- CCTV Drain Inspections
- High-Pressure Water Jetting
- Tree Root Intrusion Repairs
Whether your stormwater system has been damaged by tree roots, ageing pipework or recurring blockages, our team can assess the condition of the drainage network and recommend the most practical long-term repair.
