Renewing an Ageing Sewer System and Improving Long-Term Access for Future Maintenance
Our team attended a property in Darling Point to complete sewer diversion and drainage renewal works, replacing ageing sewer pipework, improving access for future maintenance, and restoring reliable wastewater flow throughout the property.
Many homes throughout Sydney's older eastern suburbs were built long before modern PVC drainage systems became standard. While the original sewer infrastructure has often performed well for decades, ageing materials such as terracotta and cast iron eventually begin to deteriorate, making sewer renewals a common part of renovating and maintaining older homes.
For this project, our team upgraded sections of the existing sewer system while ensuring the property remained connected to wastewater services throughout the construction process.
Maintaining Sewer Services During Construction
One of the first priorities was ensuring the occupants could continue using their plumbing while the existing sewer line was being modified.
To achieve this, the existing cast iron sewer stack was cut and a temporary above-ground sewer line was installed. This allowed wastewater to continue flowing safely while underground renewal works were completed.
Temporary sewer diversions are commonly used during major renovations because they allow construction to proceed without leaving the property without essential plumbing services.
Replacing Ageing Sewer Pipework
Once temporary drainage had been established, the surrounding pavers were carefully removed and excavation commenced to expose the existing underground sewer system.
Inspection identified ageing terracotta sewer pipework requiring renewal.
Terracotta pipes were widely used throughout Sydney for many decades and can still be found beneath countless homes in suburbs including Darling Point, Double Bay, Woollahra, Paddington, Edgecliff, Elizabeth Bay, Rushcutters Bay and Potts Point.
Although terracotta was considered an excellent material when originally installed, it naturally becomes more susceptible to cracking, joint movement and tree root intrusion as it ages.
Rather than continually repairing isolated sections, replacing damaged pipework with modern PVC drainage often provides a far more reliable long-term solution.

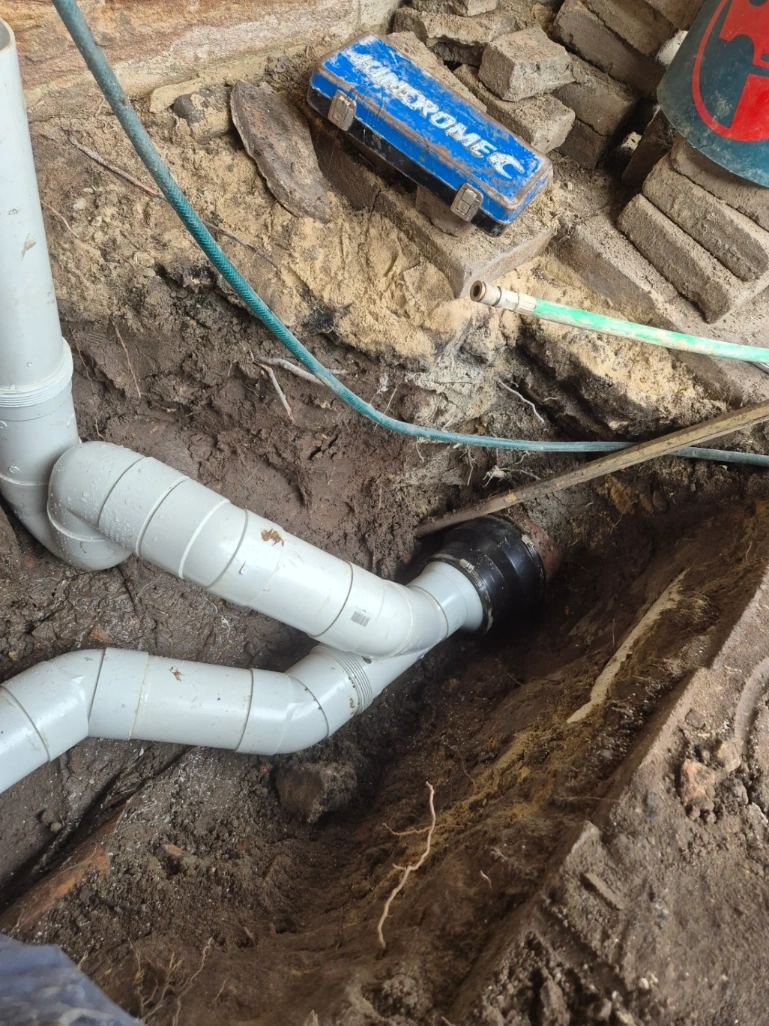

For this project, defective sections of the existing sewer line were removed and replaced with new PVC sewer pipework designed to improve reliability and drainage performance.
Upgrading the Sewer System for Easier Maintenance
One advantage of renewing older drainage systems is the opportunity to improve future access.
Many original sewer installations contain very few access points, making blockages and inspections much more difficult.
As part of these works, a new Overflow Relief Gully (ORG) and inspection opening were installed.
An Overflow Relief Gully is an important safety feature within a property's sewer system. If the sewer ever becomes blocked downstream, the ORG provides a controlled overflow point outside the home rather than allowing wastewater to surcharge through internal fixtures such as toilets or floor wastes.
The new inspection opening also provides direct access into the sewer line, making future CCTV inspections, maintenance and drain cleaning significantly easier without requiring unnecessary excavation.
Using CCTV Drain Cameras to Inspect the Existing Sewer

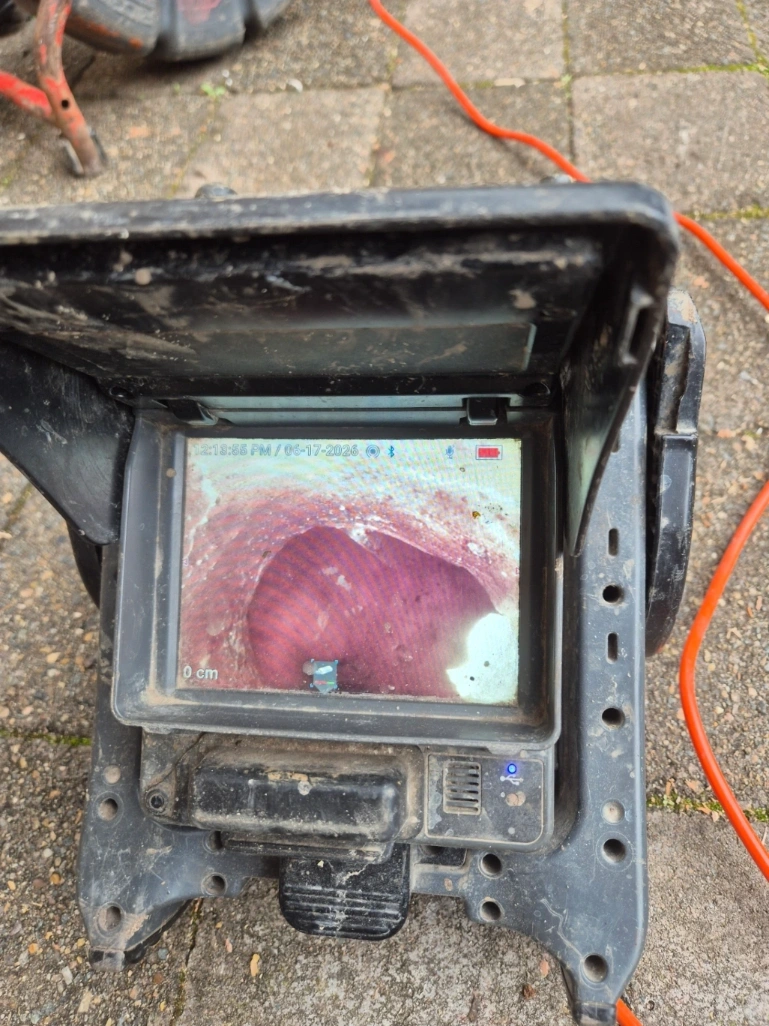

Before completing the project, a CCTV drain camera inspection was carried out to assess the condition of the downstream sewer line leading towards the main sewer connection.
Drain cameras have become one of the most valuable tools in modern drainage plumbing because they allow plumbers to inspect the inside of underground pipes without digging them up.
The inspection confirmed the condition of the remaining sewer line, verified connection integrity, and ensured there were no additional defects requiring attention before the project was finalised.
Rather than assuming the downstream drainage was in good condition, the camera inspection provided confidence that the renewed pipework was connecting into a serviceable sewer system.
High Pressure Water Jetting to Restore Flow
Following the CCTV inspection, high-pressure water jetting was completed to clean the sewer line and remove accumulated debris.
High-pressure jetting uses specialised equipment to cut through grease, sediment, tree roots and other obstructions while flushing the pipe clean.
Cleaning the drainage system during renewal works helps restore maximum flow capacity and provides a clean internal surface before the upgraded system is returned to service.
Building a Sewer System Designed to Last
Once the new pipework had been installed, the drainage system was carefully supported using 8–10mm blue metal aggregate.
This bedding material helps distribute loads evenly beneath the pipe while reducing the risk of future settlement.
New connections were also concrete encased to provide additional structural support and long-term durability where the new PVC drainage connected into the existing sewer infrastructure.
Any exposed pipework installed above ground was securely clipped and supported to protect the installation and ensure ongoing compliance.
These steps may not be immediately visible once the project is complete, but they play an important role in the long-term reliability of the drainage system.
Restoring the Property
After all testing had been completed, excavated trenches were backfilled and compacted before the existing pavers were reinstated to restore the appearance of the property.
The upgraded sewer system was then fully tested and commissioned to confirm reliable wastewater flow before the site was cleaned and all waste materials removed.
Why Sewer Renewals Are Common in Older Sydney Suburbs
Properties throughout Darling Point and many neighbouring eastern suburbs continue to rely on drainage systems installed several decades ago.
As these systems age, it becomes increasingly common to encounter:
- Cracked terracotta sewer pipes
- Corroded cast iron stacks
- Tree root intrusion
- Poor drainage falls caused by ground movement
- Repeated sewer blockages
- Limited maintenance access
Suburbs such as Darling Point, Double Bay, Woollahra, Paddington, Edgecliff, Rushcutters Bay, Elizabeth Bay and Potts Point all contain large numbers of older homes where sewer renewal projects like this are becoming increasingly common.
Upgrading ageing drainage infrastructure before major failures occur not only improves reliability but also makes future maintenance significantly easier through the addition of modern inspection openings and compliant drainage components.
