Rainwater Tank Installation & Stormwater Connection – Elanora Heights

Installing and Connecting Rainwater Systems for Efficient Water Storage

Our team attended a residential property in Elanora Heights to complete a full rainwater tank installation, including base preparation and connection into the existing stormwater system. With increasing focus on water conservation and sustainable living, rainwater systems are becoming a practical addition to many homes across Sydney.

For this project, Pure Plumbing Professionals installed a 10,000L rainwater tank and integrated it with the property’s existing drainage network to allow for efficient rainwater collection, storage, and controlled overflow.

This type of work goes beyond simply placing a tank — it involves designing a system that works with the home’s stormwater drainage to manage water effectively.

Why Rainwater Tank Installation Is Important

Rainwater tanks help capture and reuse water that would otherwise be lost into the stormwater system.

A properly installed system can:

• Reduce reliance on mains water
• Provide water for outdoor use
• Help manage heavy rainfall runoff
• Support long-term water conservation

In areas like Elanora Heights, where properties often have large roof catchments, a well-designed rainwater system can make a significant difference in water usage.

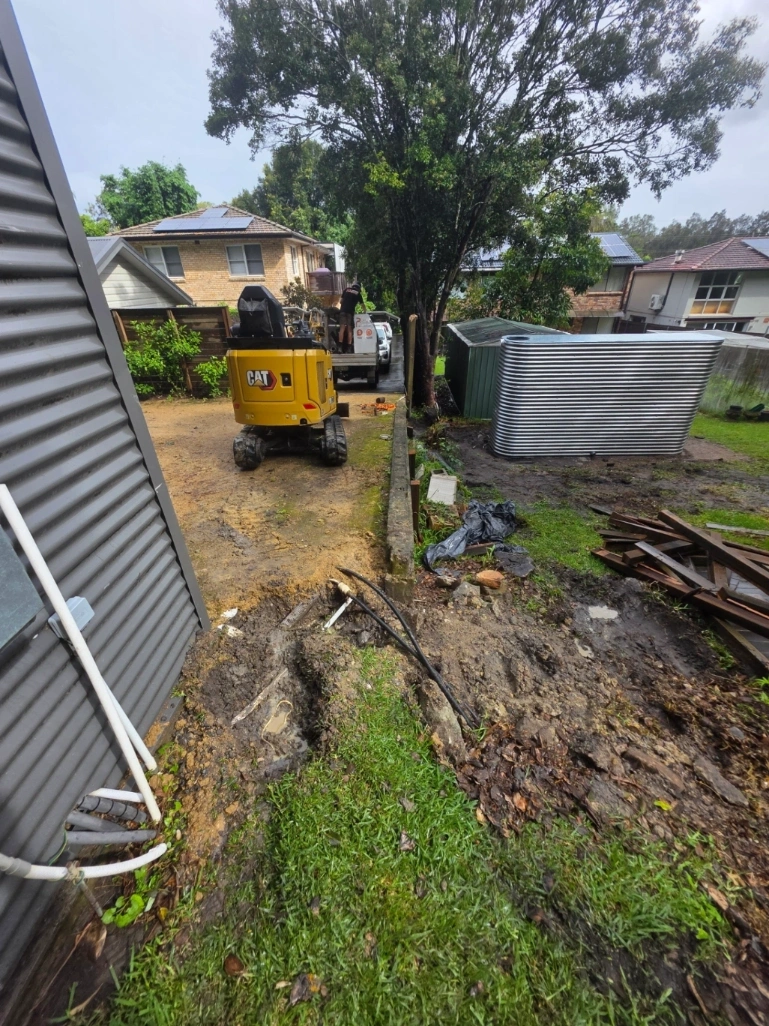

Preparing the Tank Base for Stability

The first step in any rainwater tank installation Elanora Heights project is preparing a stable foundation.

For this installation, our team:

• Excavated and levelled the area adjacent to the shed
• Installed compacted road base to create a solid platform
• Set the correct height to align with existing drainage connections

A stable base is critical because water tanks become extremely heavy when full. Proper preparation prevents movement, settling, or stress on pipe connections over time.

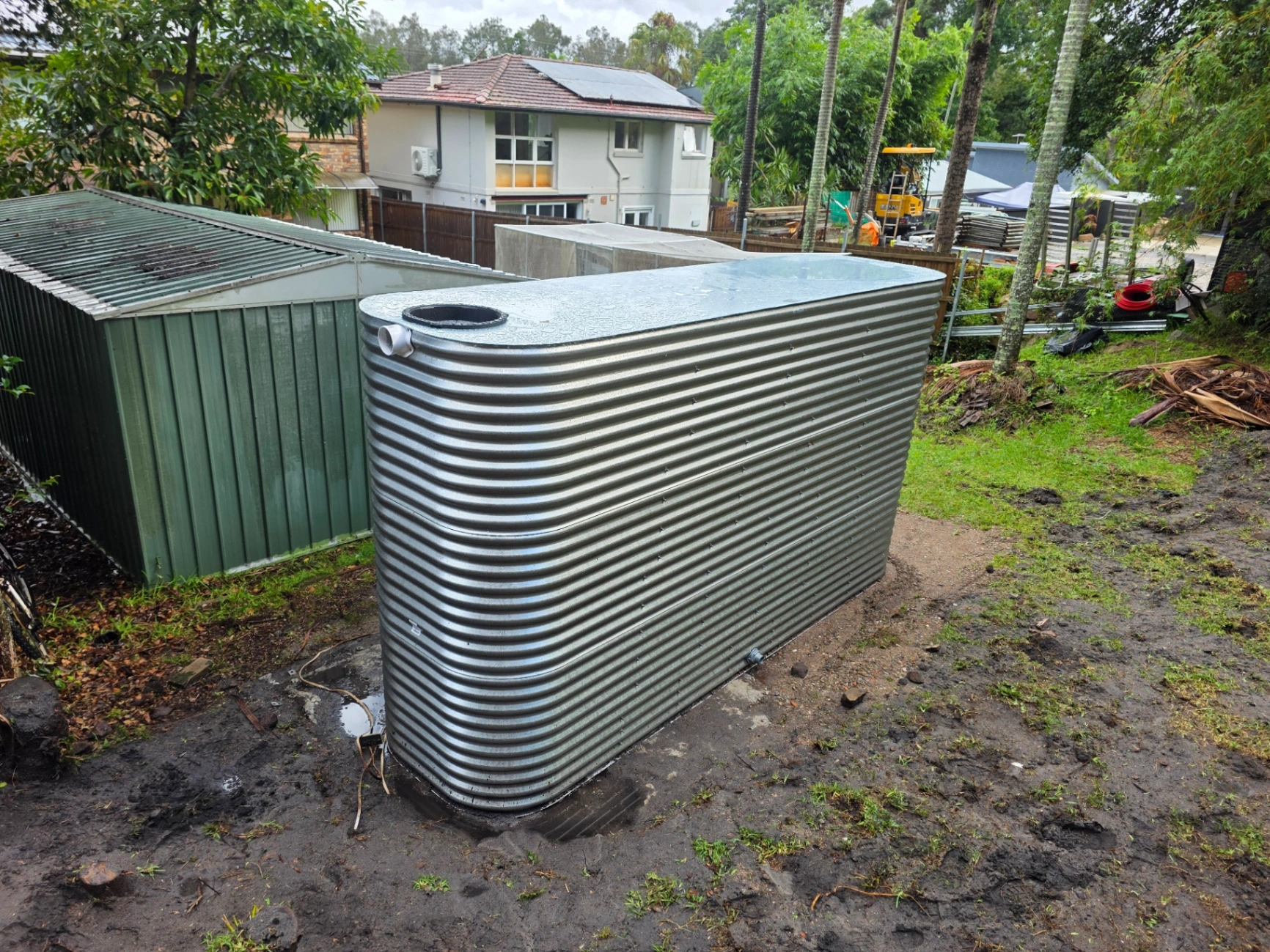

Installing the 10,000L Rainwater Tank

Once the base was prepared, a 10,000L Colorbond steel rainwater tank was installed.

This tank size is ideal for residential properties as it provides:

• High storage capacity
• Consistent supply for outdoor use
• Effective collection during heavy rainfall

The tank was positioned to allow easy connection to existing downpipes and stormwater lines, ensuring efficient water flow into the system.

Connecting the Tank to the Stormwater System

A key part of this project was integrating the tank into the property’s stormwater drainage system.

Our team supplied and installed 100mm PVC pipework to:

• Connect the tank inlet to existing garage downpipes
• Direct roof water into the tank for collection
• Manage overflow back into the stormwater system

This ensures that:

• Rainwater is captured efficiently
• Excess water is safely redirected
• The system continues to function during heavy rain

Proper stormwater connection is essential in any rainwater installation to prevent overflow issues and maintain system performance.

Installing Outlet and External Access Connections

To make the stored water usable, a 50mm outlet was installed along with a 65mm Storz fire connection fitting and dust cap.

This setup allows:

• Easy external access to stored water
• Connection for hoses or fire equipment
• Controlled water distribution from the tank

These fittings are often included in larger water storage systems where accessibility and versatility are required.

Securing and Supporting Pipework

All pipework connected to the tank was secured and bracketed to ensure long-term durability.

Proper support prevents:

• Pipe movement during water flow
• Stress on fittings and joints
• Potential leaks over time

Attention to these details is an important part of professional Drainage Solutions and ensures the system remains reliable.

Testing and Commissioning the System

After installation, the system was fully tested to confirm correct operation.

This included:

• Checking water flow from downpipes into the tank
• Verifying overflow connection into the stormwater system
• Ensuring all fittings were leak-free
• Confirming the tank was operating as designed

Testing ensures that the entire rainwater system works efficiently from collection to discharge.

What Most Homeowners Don’t Realise About Rainwater Systems

Many people think installing a tank is just about storing water, but the system around it is just as important.

A complete rainwater tank installation includes:

• Proper base preparation
• Correct connection to downpipes
• Overflow integration with stormwater
• Secure pipework and fittings

Without these elements, the system may not perform effectively or could cause drainage issues.

When Rainwater Tank Installation Is Recommended

Installing a rainwater tank is ideal when:

• You want to reduce mains water usage
• Your property has large roof areas for collection
• Stormwater runoff needs to be managed
• You want a sustainable water solution for outdoor use

In areas like Elanora Heights, these systems are particularly beneficial due to rainfall patterns and property layouts.

Rainwater Tank Installation Services in Elanora Heights

Properties in Elanora Heights are well suited to modern rainwater tank installation and integrated drainage systems.

The team at Pure Plumbing Professionals provides:

• Rainwater tank installation Elanora Heights
• Stormwater and downpipe connections
• Complete water storage systems
• Integration with existing stormwater drainage
• Ongoing Drainage Solutions and maintenance

Each system is designed to suit the property layout and ensure efficient water management.

If you’re considering installing a rainwater tank or upgrading your drainage system, professional installation ensures everything is connected and operating correctly.
